Views: 35 Author: Site Editor Publish Time: 2025-06-12 Origin: Site
If you’ve ever found yourself stuck in the mud or navigating tough trails with your ATV or UTV, you know how much a reliable electric ATV winch can save the day. For most novices, there will be many questions when using or choosing electric ATV winch. This article selects some common questions and gives specific answers.
Choosing the right electric winch for your ATV or UTV can feel overwhelming, but it doesn’t have to be. By focusing on key factors like weight capacity, motor type, and cable options, you can find a winch that fits your needs perfectly. Let’s break it down step by step.
The first thing you need to consider is the winch capacity. This tells you how much weight the winch can pull safely. A good rule of thumb is to choose a winch with a pulling capacity that’s at least 1.5 times the weight of your ATV or UTV. For example, if your ATV weighs 1,000 pounds, look for a winch with a capacity of at least 1,500 pounds.

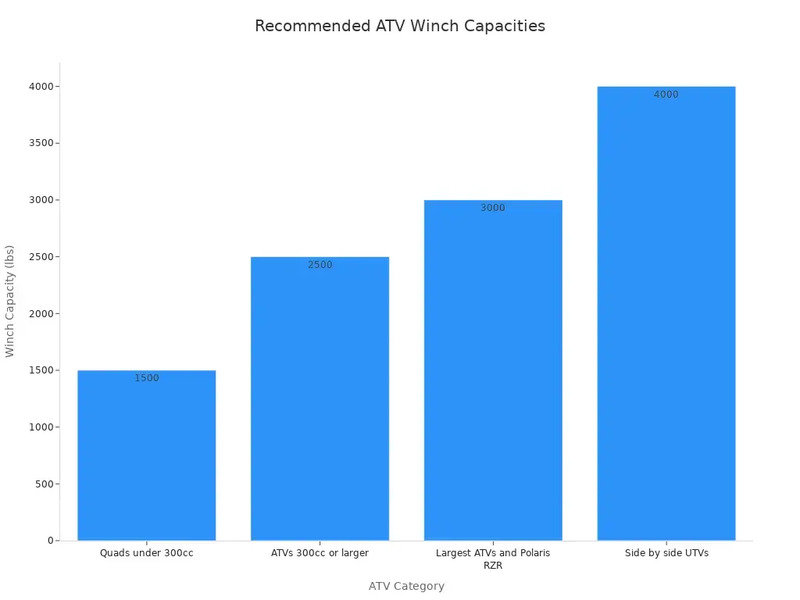

Here’s a quick guide to help you decide:
ATV Category | Recommended Winch Capacity |
Quads under 300cc | |
ATVs 300cc or larger | |
Largest ATVs and Polaris RZR | |
Side by side UTVs |
When choosing, remember that the winch line must have at least five wraps around the drum to maintain its pulling power. This ensures safety and prevents the line from slipping during use.
The motor is the heart of your electric winch, and there are two main types to choose from: permanent magnet and series wound. Each has its pros and cons, depending on how you plan to use your winch.
Permanent Magnet Motors: These are lightweight and energy-efficient, making them ideal for occasional use. They’re perfect if you only need your winch for light-duty tasks or emergencies. However, they can overheat if used for extended periods.
Series Wound Motors: These motors are built for heavy-duty tasks. They’re more durable and can handle longer pulling sessions without overheating. If you frequently use your winch for tough jobs, this is the better choice.
For most ATV and UTV owners, a permanent magnet motor works well. But if you’re tackling extreme conditions or heavy loads, a series wound motor offers the reliability you need.
The winch line is another critical feature to consider. You’ll need to choose between steel cable and synthetic rope. Both have their advantages, so it depends on your priorities.
Steel Cable: This is the traditional option. It’s strong, durable, and resistant to abrasion. Steel cables are great for rugged terrains where the line might rub against rocks or trees. However, they’re heavier and can rust over time if not maintained properly.
Synthetic Rope: This modern alternative is lightweight and easy to handle. It’s safer because it doesn’t store as much energy as steel, reducing the risk of injury if the line snaps. Synthetic ropes are also resistant to rust, but they can wear out faster in abrasive conditions.
If you’re looking for a winch line that’s easy to use and safe, synthetic rope is a great choice. But if you need something tough for harsh environments, steel cable is the way to go.
When you're shopping for an electric winch, speed and power output are two features you can't ignore. These factors determine how quickly and efficiently your winch can pull a load.
Winch speed refers to how fast the winch line retracts under a specific load. Faster speeds are ideal when you're in a hurry, like during a recovery situation. However, keep in mind that speed often decreases as the load increases. For example, a winch pulling a light ATV might reel in the line quickly, but the same winch will slow down significantly when pulling a heavier UTV.
Power output, on the other hand, is all about the motor's strength. A powerful motor ensures your winch can handle tough jobs without overheating or stalling. If you frequently tackle challenging terrains or heavy loads, look for a winch with a high power output.
Pro Tip: Check the winch line speed under load. Manufacturers often list this in the product specifications. A winch with a balanced combination of speed and power output will give you the best performance.
Durability and waterproofing are essential for any electric winch, especially if you plan to use it in muddy, wet, or rugged conditions. A durable winch will last longer and perform reliably, while waterproofing ensures it can handle exposure to water without malfunctioning.
Note: Always check the IP rating of a winch. A higher IP rating means better protection against water and dust, which is crucial for maintaining long-term performance.
Beyond the basics, there are additional features that can make your winching experience safer and more convenient. Here are a few worth considering:
Wireless Remote Controls: These allow you to operate the winch from a safe distance, reducing the risk of injury.
Automatic Braking Systems: These systems stop the winch line immediately when you release the control, preventing accidents.
Hook Safety Latches: A secure latch on the hook ensures the winch line stays attached during operation.
Battery Compatibility: Make sure your ATV or UTV's battery can handle the winch's power requirements. A weak battery can lead to poor performance or even damage the winch.
These features might seem minor, but they can significantly enhance the safety and efficiency of your electric winch. When you're comparing models, take a close look at these extras to find the best fit for your needs.
Before you start the installation, gather everything you’ll need. Having the right tools and equipment makes the process smoother and avoids unnecessary delays. Here’s a quick checklist:
Electric winch: Ensure it matches your ATV’s weight capacity.
Winch line: Choose between steel cable or synthetic rope based on your preference.
Mounting plate: This secures the winch to your ATV.
Socket wrench set: Essential for tightening bolts.
Screwdrivers: Both flathead and Phillips types.
Electrical connectors: For wiring the winch to your ATV’s battery.
Gloves: Protect your hands when handling the winch line.
Double-check your list before starting. Missing tools can slow you down and make the installation harder than it needs to be.
Installing your winch doesn’t have to be complicated. Follow these steps to get it done quickly:
Attach the mounting plate: Secure the plate to your ATV’s frame using bolts. Make sure it’s tight and aligned properly.
Position the winch: Place the winch on the mounting plate. Align the bolt holes and tighten the bolts with a socket wrench.
Install the winch line: Wrap the winch line around the drum. Leave at least five wraps to maintain pulling power.
Connect the wiring: Attach the winch’s electrical connectors to your ATV’s battery. Follow the wiring diagram provided in the manual.
Test the winch: Pull the winch line slightly to ensure it retracts smoothly. Check the remote control for proper operation.
Take your time with each step. Rushing can lead to mistakes that affect the winch’s performance.
Even with clear instructions, mistakes can happen. Here are some common errors and how to avoid them:
Skipping the mounting plate: Never attach the winch directly to the ATV frame. It needs a mounting plate for stability.
Improper winch line wrapping: Failing to leave enough wraps on the drum can cause the line to slip during use.
Loose wiring connections: Double-check all electrical connections. Loose wires can lead to power issues or damage the winch.
Ignoring the manual: Always refer to the manufacturer’s instructions. They provide specific details for your winch model.
Avoid these errors to ensure your winch works reliably and safely.
Once you’ve installed your winch, it’s time to test and secure it. This step ensures everything works properly and keeps you safe during operation. Let’s walk through the process.
Start by checking the winch’s basic functions. Use the remote control to extend and retract the winch line. Pay attention to how smoothly the line moves. If it jerks or stops unexpectedly, double-check the wiring connections. A loose wire can cause power interruptions.
Next, test the winch under a light load. Attach the hook to a secure anchor point, like a tree or a tow strap. Slowly pull the line to see if the winch handles the load without struggling. If it stalls or overheats, the motor might not be powerful enough for your ATV.
Pro Tip: Always keep your hands clear of the winch line while testing. Wear gloves for extra protection.
Once you’re confident the winch works, secure it for long-term use. Tighten all bolts on the mounting plate to prevent the winch from shifting during operation. Inspect the winch line to ensure it’s wrapped neatly around the drum. A tangled line can reduce pulling power and cause damage.
Finally, store the remote control in a safe, dry place. This prevents it from getting lost or damaged. If your winch has a wireless remote, check the battery regularly to avoid surprises when you need it most.
By testing and securing your winch, you’ll be ready for any recovery situation. A little preparation goes a long way in ensuring your winch performs reliably when it matters.
Keeping your electric ATV winch in top shape isn’t hard, but it does require regular care. A little maintenance goes a long way in ensuring your winch works reliably when you need it most. Let’s dive into the essentials.
Your winch faces dirt, mud, and water every time you use it. Cleaning it regularly prevents buildup that can damage its components. Start by wiping down the winch with a damp cloth after each use. For stubborn dirt, use a mild detergent and a soft brush.
Lubrication is equally important. Apply grease to the winch drum and gears to keep them moving smoothly. Don’t forget the hook and latch mechanism—they need lubrication to stay functional.
Pro Tip: Avoid using high-pressure water to clean your winch. It can force dirt into sensitive areas and damage seals.
The winch line takes the brunt of the load during operation. Inspect it regularly for fraying, kinks, or rust. If you’re using a steel cable, look for broken strands or corrosion. Synthetic ropes need checking for cuts or wear.
Replace the line immediately if you spot any damage. A compromised winch line can snap under pressure, putting you at risk. When replacing, follow the manufacturer’s guidelines to ensure proper installation.
Safety Tip: Always wear gloves when handling the winch line. Steel cables can cause cuts, and synthetic ropes can burn your skin.
Your winch’s electrical system is its lifeline. Regular checks keep it running smoothly. Here’s what to focus on:
Run the winch cable out and back in at least once a month. This prevents corrosion on solenoid contacts and ensures reliable operation.
Inspect the battery and wiring. Electric winches can draw over 400 amps during use, so your battery must be up to the task.
Check for loose or damaged connectors. Tighten them to avoid power interruptions.
Think of your winch like a fire extinguisher—it must work every time without fail. Regular electrical checks ensure it’s ready when you need it most.
Storing your electric ATV winch properly can make a big difference in how long it lasts and how well it performs. If you’re not using your winch regularly, taking a few simple steps can protect it from damage and keep it ready for action.
Before you put your winch away, give it a good cleaning. Dirt, mud, and moisture can cause rust or wear over time. Use a damp cloth to wipe down the winch, and make sure the drum, cable, and hook are free of debris. For stubborn grime, a soft brush and mild soap work wonders.
Tip: Let your winch dry completely before storing it. Moisture can lead to corrosion, especially on steel cables.
Where you store your winch matters. Pick a cool, dry place away from direct sunlight. Extreme heat or cold can weaken the materials and affect the motor. If you’re storing your ATV or UTV outdoors, consider using a weatherproof cover to shield the winch from rain, snow, and UV rays.
For steel cables, apply a light coat of lubricant to prevent rust. If you’re using synthetic rope, keep it out of direct sunlight to avoid UV damage. Coil the line neatly around the drum to prevent kinks or tangles.
Unplug the winch from your ATV’s battery if you’re not using it for a while. This prevents accidental activation and protects the electrical components from draining the battery.
Pro Tip: Store the remote control in a safe, dry spot. A misplaced or damaged remote can leave you stranded when you need your winch the most.
By following these storage tips, you’ll keep your winch in top shape and ready for your next adventure. A little care now saves you from headaches later!
Power issues can stop your winch from working when you need it most. If your winch doesn’t respond, start by checking the battery. A weak or dead battery is often the culprit. Make sure your ATV’s battery has enough charge to handle the winch. Most winches require a battery with at least 650 cold cranking amps (CCA).
Next, inspect the wiring. Loose or corroded connections can interrupt power flow. Tighten any loose wires and clean off corrosion with a wire brush. If the winch still won’t work, test the solenoid. A faulty solenoid can prevent the winch from receiving power. Replacing it is usually a quick fix.
Tip: Run your winch line out and back in once a month. This keeps the electrical components in good shape and prevents corrosion.
A jammed winch line can be frustrating, but it’s usually easy to fix. First, stop using the winch immediately. Continuing to operate it can damage the line or the drum. Put on gloves to protect your hands, especially if you’re working with a steel cable.
Carefully unwind the winch line by hand. Look for knots, kinks, or overlapping sections. Straighten out the line as you go. If the line is stuck, use the winch’s reverse function to loosen it. For stubborn jams, you might need to remove the line entirely and rewrap it neatly around the drum.
To prevent future jams, always spool the winch line evenly. Keep tension on the line while retracting it to avoid loose wraps.
Overheating can happen when your winch works too hard for too long. To avoid this, monitor the motor and gear oil temperature during use. The gear oil should never exceed 250°F (121°C). If it gets too hot, stop using the winch and let it cool down.
Another factor to watch is the amperage draw. A winch can pull 400 amps or more during operation, which puts a strain on your ATV’s electrical system. Make sure your battery meets the recommended capacity of 650 CCA to handle this load.
Here’s a quick reference table to help you manage overheating:
Factor | Details |
Maximum Gear Oil Temperature | 250°F (121°C) |
Amperage Draw | 400+ amps |
Recommended Battery Capacity | Minimum 650 CCA |
Pro Tip: Give your winch a break during heavy use. Short pauses can prevent overheating and extend the life of your winch.
By addressing these common issues, you’ll keep your winch running smoothly and ready for action.
A malfunctioning remote control can turn your winch into a frustrating paperweight. If your remote isn’t working, don’t panic. You can troubleshoot it quickly with a few simple steps.
Start with the basics. Dead batteries are often the culprit when your remote stops responding. Replace the batteries with fresh ones and test the remote again. If it still doesn’t work, move on to the next step.
Loose or damaged wires can interrupt the connection between your remote and the winch. Look for frayed wires or loose connectors near the winch line. Tighten any loose connections and replace damaged wires. This simple fix often restores functionality.
If your remote uses wireless technology, signal interference might be the issue. Move closer to the winch and ensure there are no obstacles blocking the signal. If the remote still doesn’t work, try resetting it. Most remotes have a reset button or a specific sequence to re-pair them with the winch.
Tip: Keep your remote control dry and clean. Moisture or dirt can damage internal components and cause malfunctions.
Sometimes, the remote itself is faulty. If you’ve tried everything and it still doesn’t work, consider replacing it. Check the winch’s manual for compatible remote models. A new remote can save you time and frustration.
By following these steps, you’ll get your remote back in action and keep your winch line moving smoothly. Regular checks and proper care can prevent future issues and ensure your winch is ready when you need it most.
Operating an electric ATV winch can be a lifesaver, but it also comes with risks if you’re not careful. Following safety guidelines ensures you stay protected while getting the job done efficiently. Let’s dive into the essentials.
Before you even think about using your winch, make sure you’re wearing the right gear. Safety gear isn’t just a precaution—it’s a necessity. Here’s what you’ll need:
Heavy-duty gloves: These protect your hands from cuts, burns, or injuries while handling the winch line. Steel cables can fray, and synthetic ropes can cause friction burns.
Safety goggles: Flying debris or a snapping winch line can cause serious eye injuries. Goggles shield your eyes from unexpected hazards.
Sturdy boots: A solid pair of boots gives you better footing, especially on slippery or uneven terrain.
Winch dampener: This is a weighted bag or blanket placed over the winch line. It reduces the risk of recoil if the line snaps.
Pro Tip: Always inspect your safety gear before use. Worn-out gloves or damaged goggles won’t offer the protection you need.
Overloading your winch is one of the quickest ways to damage it—or worse, put yourself in danger. Every winch has a pulling capacity, which is the maximum weight it can handle safely. Exceeding this limit can cause the motor to overheat, the cable to snap, or the winch to fail entirely.
To avoid overloading, calculate the weight of your ATV and any additional load it’s carrying. Then, compare this to your winch’s pulling capacity. A good rule of thumb is to choose a winch with a capacity that’s at least 1.5 times the weight of your ATV. For example, if your ATV weighs 1,000 pounds, your winch should have a pulling capacity of at least 1,500 pounds.
Note: If you’re unsure about your winch’s capacity, check the manual or the label on the winch itself. Never guess—it’s not worth the risk.
Another way to prevent overloading is by using a snatch block. This pulley-like device doubles your winch’s pulling power and reduces strain on the motor. It’s a simple tool that can make a big difference in tough recovery situations.
When you’re using your winch, keeping a safe distance is crucial. Standing too close to the winch line puts you at risk if the line snaps or the hook detaches. So, how far should you stand?
For a 50-foot winch cable, maintain a distance of 75 to 100 feet.
For a 100-foot winch cable, stay 150 to 200 feet away.
These distances ensure you’re out of harm’s way if something goes wrong.
Safety Tip: Always position yourself to the side of the winch line, not directly in front or behind it. This minimizes the risk of injury if the line recoils.
Using a winch controller with a long cord or a wireless winch controller can help you operate the winch from a safe distance. If your winch kit doesn’t include one, consider upgrading. It’s a small investment for a big boost in safety.
Finally, make sure the winch hook is securely attached to the anchor point. A loose hook can slip off under tension, creating a dangerous situation. Double-check the hook’s latch before you start pulling.
By following these safety tips, you’ll not only protect yourself but also extend the life of your electric winch. A little caution goes a long way when you’re out on the trails.
A winch dampener might seem like a small accessory, but it plays a big role in keeping you safe during winching operations. If the winch line snaps under tension, it can recoil with dangerous force. This is where the dampener steps in—it absorbs the energy and reduces the risk of injury.
Think of a winch dampener as a weighted blanket for your winch line. It’s usually made of heavy-duty fabric or rubber and is designed to drape over the line while you’re pulling. The weight of the dampener slows down the recoil if the line breaks, preventing it from whipping back toward you or anyone nearby.
Using a winch dampener isn’t just about following best practices—it’s about protecting yourself and others. Here’s why it’s essential:
Enhanced Safety: The dampener minimizes the risk of injury by controlling the recoil. Without it, a snapping winch line can cause serious harm.
Peace of Mind: Knowing you’ve taken steps to ensure safety lets you focus on the task at hand.
Versatility: Many dampeners double as storage bags for your winch accessories, making them a practical addition to your gear.
Safety Tip: Always use a winch dampener, even for light loads. Accidents can happen when you least expect them.
Using a winch dampener is simple, but it’s important to do it correctly. Follow these steps:
Position the Dampener: Place the dampener over the winch line, ideally at the midpoint between the winch and the anchor point.
Secure It: Some dampeners come with straps or Velcro to hold them in place. Make sure it’s snug but not too tight.
Check the Setup: Before you start pulling, double-check that the dampener is positioned correctly and won’t slide off during operation.
Operate the Winch: Proceed with winching, keeping a safe distance from the line.
Pro Tip: If you don’t have a winch dampener, you can use a heavy jacket or blanket as a temporary solution. It’s not as effective, but it’s better than nothing.
Not all winch dampeners are created equal. When picking one, look for these features:
Durability: Choose a dampener made from tough materials that can withstand wear and tear.
Weight: A heavier dampener provides better recoil control.
Ease of Use: Look for dampeners with straps or clips for easy attachment.
Compatibility: Ensure the dampener fits your winch line, whether it’s steel cable or synthetic rope.
Investing in a high-quality dampener is a small price to pay for added safety. It’s one of those accessories you’ll be glad to have when the unexpected happens.
A winch dampener isn’t just an accessory—it’s a vital safety tool. Whether you’re pulling your ATV out of a ditch or helping a friend recover their UTV, using a dampener ensures everyone stays safe. Don’t overlook this simple yet effective piece of equipment. Add it to your winching kit and make safety your top priority.
Choosing the right electric ATV winch isn’t just about pulling power—it’s about reliability and safety. A good buyer's guide helps you pick a winch that matches your ATV’s weight and recovery needs. Proper installation ensures the winch stays secure and works efficiently. Regular maintenance, like cleaning and inspecting the winch line, keeps it ready for action.
Safety should always come first. Remote controls let you operate the winch from a safe distance, while pre-use inspections catch issues before they become problems. Synthetic ropes are safer than steel cables, reducing the risk of injury.
Regular care and smart safety practices make your electric ATV winch a dependable tool. Apply these tips, and you’ll be ready for any challenge the trail throws your way.
Check your ATV’s weight and compare it to the winch’s pulling capacity. Look for mounting plate compatibility and ensure your ATV’s battery can handle the winch’s power requirements.
Tip: Always consult your ATV and winch manuals for compatibility details.
Yes, but you’ll need to take precautions. Use synthetic rope for better flexibility in cold weather. Keep the winch motor warm before operation to prevent freezing.
Pro Tip: Store your winch indoors during winter to avoid cold-related damage.
Avoid overloading the winch and inspect the line regularly for damage. Use a winch dampener to reduce recoil risks.
Safety Reminder: Always spool the line evenly and keep tension while retracting.
A snatch block doubles your winch’s pulling power and reduces strain on the motor. It’s especially useful for heavy loads or tricky recovery situations.
Emoji Insight: ️ Adding a snatch block to your kit is a smart move for tough jobs.
Clean your winch after every use, especially if it’s exposed to mud or water. Wipe it down with a damp cloth and lubricate moving parts.
Quick Tip: Avoid high-pressure water to protect seals and sensitive components.
